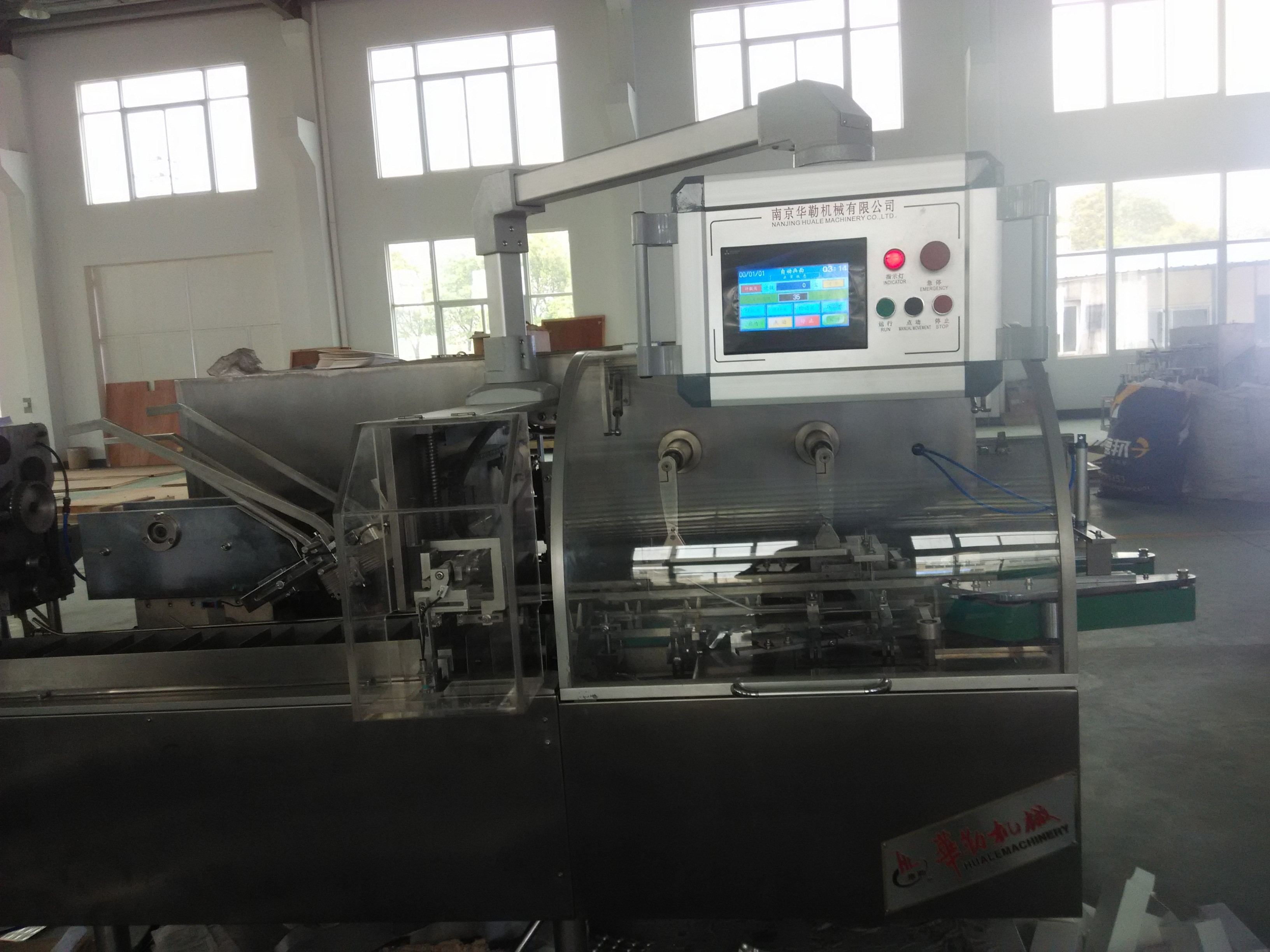

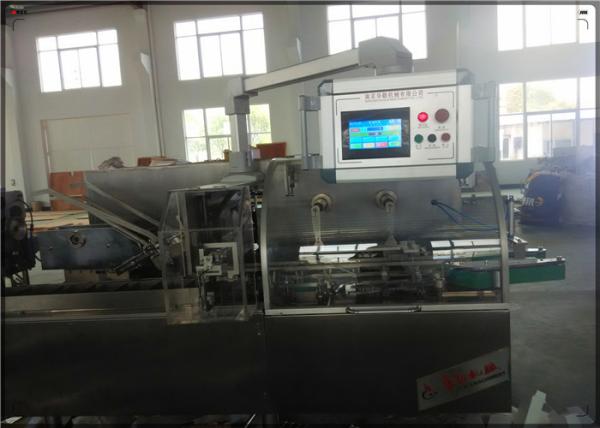

Blister Plates Automatic Cartoning Machine / Small Object Filling And Sealing Equipment

Description

It adopts PLC control and touch screen operating system with speed adjusted.

Automatic trouble shooting, alarming and production counting functions are all programmed in the machine.

Main transmission system gets overloading protecting device

The machine gets stable performance, easy changing different sizes of products

Detection and Rejection of cartons which gets no object fed or leaflet fed.

Servo motor pulling is apply to feed different styles of blister plate.

Specifications

Applications

The machine can pack different sizes and specifics of blister plate or similar objects with

automatic leaflet folding, inserting, carton opening, batch number embossing and carton

sealing (hot glue sealing is an optional for the machine).

Performance

1. The machine works continuously with mechanical pushing objects into carton with smooth and reliable working situation.
2. The object pusher comes with alarming system while the objects are not at the right position, it ensures the good carton quality and safety in operation.
3. Continuous carton opening system with pulling style opening station makes machine working more stable and smoothly.
4. The machine adopts servo feeding system which makes the feeding more smoothly and stable.
5. The machine has the vacuum protection stopping system and automatic testing and stopping system for cover opening, to ensure human safety when operating.
6. It is easy and convenient to change and adjust the product size with hand wheel.
7. The speed is controlled by converter while the whole system is controlled by PLC and operating by touch screen for easier and simpler production, all machine running status are displayed by double language.
8. The machine has the function of overloading protecting and failure diagnosis indication, and production of automatic shutdown system failure.

Wenzhou Huale Machinery Co.,LTD is one of the biggest manufacture in China.

Our company was founded in 1999, specialized in producing pharmaceutical package production line,Automatic

capsule filling machine,Blister Packing Machine,automatic cartoning machine,etc for more than15 years.

We have cooperated with many famous companies in China and abroad:Southern Asia,Middle East,Africa,Europe,

America lands and Australia,more than 60 countries are using our products.Our machines all have CE certification,we would always follow your interests and offer you good quality，protective package and competitive price.

"Stand in China,Face to World,Establish the first class company"with our own belief that"Making Worthy to Customer",as well as our company belief that "Believe,Cooperation,Service,Customer,Quality"!
