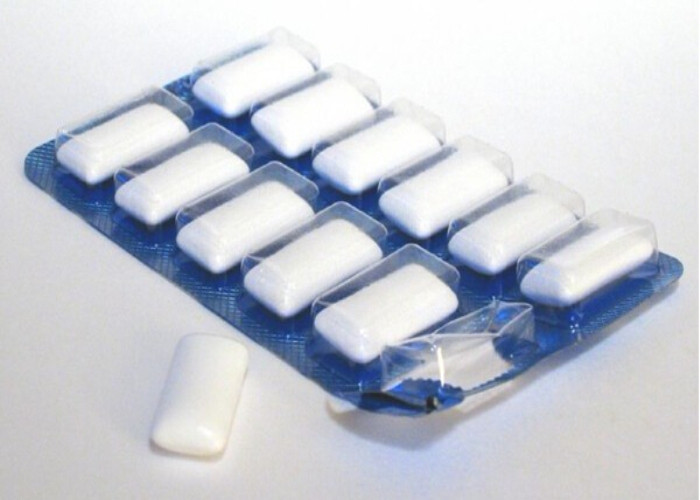

Alu PVC Chewing Gum Automatic Blister Packing Machine PLC Control
It is the ideal packing equipment with convenience operation, full
purpose function. The product passed the CE certification and meet
the GMP requirement.
Description
1.Use touch screen,PLC
2.Use servo motor pulling
3.Cylinder hot sealing,extend machine’s life
4.Automatic feeder
Main Performance and Feature:

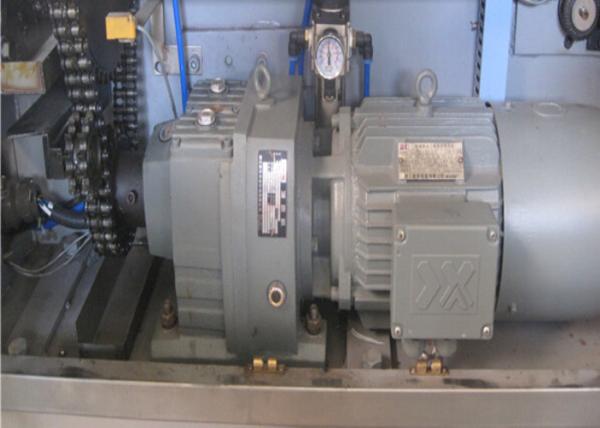

1. With frequency step-less speed regulating, the punching
frequency reaches 15-45times per minute.
2. The stroke can be adjusted within 30-130mm, which is easy to
adjust with correct synchronization.
3. Adopts plate-type mould, positive-pressure forming, featured by
batch number printing,creasing and cutting,aluminum-foil/plastics
automatic feeding, automatic alarm for broken—piece and
finished-piece and automatic stop etc.
4. Equipped with one set general feeder,which filling percentage
reaches 99.5 and The feeder is fitted with dust exhaust joint so
can overcome the dust problem during feeding.
5.Adopts registering matching heating so that can reduce the heat
energy loss of heater to the least, and the required temperature
will be greatly reduced.
6. This machine has small volume, light weight, cramped structure,
easy operation and maintenance.
TECHNICAL PARAMETER
| Item Model | DPP-350A |
| Cutting Frequency(ideal sizes:80*57mm) | 15-45 cutting/min |
| Max. Forming Area and Depth | 350×130×15mm |
| Adjustable Scope of Travel(mm) | 30-140mm |
| Packaging material(I.D.Φ75) | PVC(mm) | (0.15-0.6)×350×(Φ400) |
| PTP(mm) | (0.02-0.15)×350×(Φ400) |
| Paper(mm) | (50-100)g/㎡ ×350×(Φ400) |
| Power | 380V 50Hz 9.5kw |
| Air compression(self-prepared) | 0.6-0.8Mpa≥0.6m³/min |
| Recycle water or circulating water consumption | 40-80L/h |
| Overall Dimension(L*W*H)(including foundation) | 3650×850×1700mm |
| Dimension of Each Part | 1850×850×1700(front) |
| 1800×850×1650(back) |
| Weight | About 2000kg |
PACKAGE
- The machine will not be shaking in transport with wooden fixed.
- The machine will not be affected with damp in transport with packed
with PE plastic bags.
- Easy shaking station will fixed with hard rope.
- Long machine will packed separately.
- If there are strict requirements, chassis can use iron girders.
WARRANTY
- Technical Support(24 hours on line support by emails, skype, MSN,
mobile).
- Loading inform(loading port, destination port, shipping date, CBM,
weight, etc.)
- Video for debugging after sent products.
- Pre-maintance.
- Quality guarantee for 1 year. Within warranty period, we provide
spare parts for replacement free if not man-factor.
- Welcome send us samples to test on our machine and we will take
video for you to confirm.
- Welcome visit our factory for checking machine and offer training
course for your workers.
