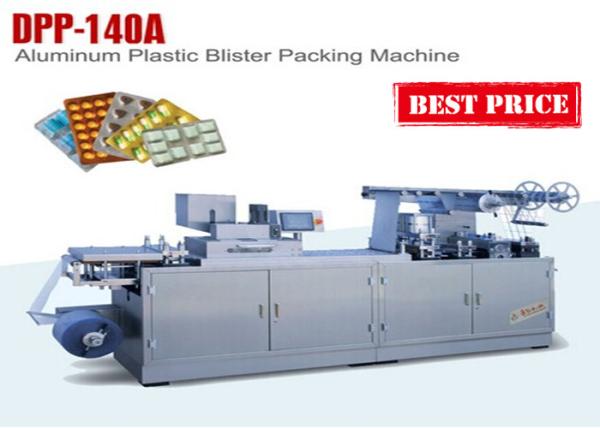

    Fully Automatic Blister Packing Machine High Speed Blister Packaging Machinery

    Ask Lasest Price
    Brand Name : HUALE MACHINERY
    Model Number : DPP-140A
    Certification : CE
    Price : Negotiation
    Supply Ability : 15 Set per month
    Delivery Time : 30 working days after received your payment
    • Product Details
    • Company Profile

    Fully Automatic Blister Packing Machine High Speed Blister Packaging Machinery


    Fully Automatic Blister Packing Machine High Speed Blister Packaging Machinery


    Applications


    Blister Machine DPP140A is ideal for producing small batches of high quality blister packs in:
    Pharmaceutical Research and Development laboratories, Clinical trials, Stability studies, Package development, Marketing, samples, Pharmaceutical production and packaging departments.


    Specifications


    Model

    140A

    Machine Body

    Stainless Steel 304

    Blanking frequency(times/min)

    15-45

    Adjustable pulling length

    30-120mm

    Blister Plate Size

    Design According To Customers’ Requirements

    Max Forming area and depth(mm)

    140*110*15 (20 need Private custom)

    Air compressor

    (Don't provide)

    0.6-0.8Mpa ≥0.4m3/min

    Mould cooling

    (Recycle water or circulating water consumption)

    40-80 L/h

    Power supply

    (Three phase)

    380V/220V 50HZ 5.5KW

    (According to the customer need

    to select the voltage)

    Wrapper specification(mm)

    PVC

    160*(0.15-0.6)*(Φ400)

    Aluminum foil

    160*(0.02-0.035)*(Φ400)

    Overall Dimension(L*W*H)(including foundation)

    2400*650*1450

    Dimension of Each Part

    1300*650*1250front)

    1050*650*1450(back)

    Weight

    About 800kg


    Description

    • Bring your blister packing in-house instead of booking time on production lines or outsourcing to a third party – minimizes delays, allowing your new drug product to get to market sooner.
    • Blister pack using a variety of materials, novel shapes, sizes or perforations.
      Fast & easy set-up – no specialist knowledge is required to operate so there is no need for an engineer to be present.
    • HUALE can design your new blister packs. This is especially useful for customers who conduct clinical trials. We can advise them how to rationalise the number of different tools needed, even if the lab needs to package many different products.
    • Compact, portable design.
    • Fast changeover - reduces down-time between production batches.
    • Fully GMP, so it is quick to clean – requires 5 minutes.


    OVERALL SKETCH


    Fully Automatic Blister Packing Machine High Speed Blister Packaging MachineryFully Automatic Blister Packing Machine High Speed Blister Packaging Machinery

    Fully Automatic Blister Packing Machine High Speed Blister Packaging Machinery


    PACKAGING

    1. The machine will not be shaking in transport with wooden fixed.
    2. The machine will not be affected with damp in transport with packed with PE plastic bags.
    3. Easy shaking station will fixed with hard rope.
    4. Long machine will packed separately.
    5. If there are strict requirements, chassis can use iron girders.


    WARRANTY

    1. Technical Support(24 hours on line support by emails, skype, MSN, mobile).
    2. Loading inform(loading port, destination port, shipping date, CBM, weight, etc.)
    3. Video for debugging after sent products.
    4. Pre-maintance.
    5. Quality guarantee for 1 year. Within warranty period, we provide spare parts for replacement free if not man-factor.
    6. Welcome send us samples to test on our machine and we will take video for you to confirm.
    7. Welcome visit our factory for checking machine and offer training course for your workers.
