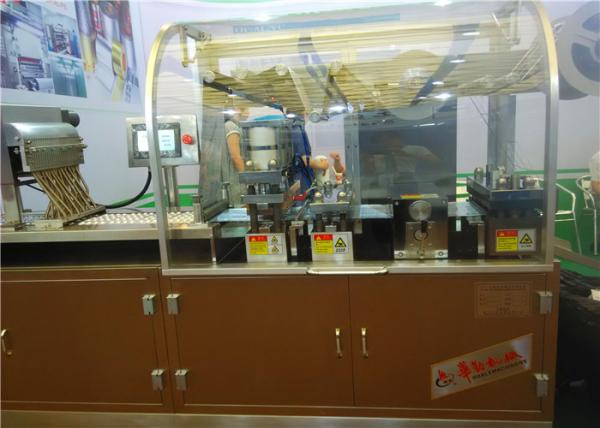

Alu Alu Tablet Blister Packaging Machine DPP - 140E Auto Medical
Blister Sealer Machine
Application
This machine is specially designed for laboratory, dosage room in
hospital, mini-pharmaceutical factory, mini-motor test workshop,
and medicine institute.
Feature
Flat plate structure, positive pressure and convenient to operate.
It is small and the stroke Length is adjustable
It is suitable for AL/AL package for any shape of objects, such as
capsule, tablet, pellet, sugar-coated tablet, leisure candy, milk
tablet, health care pills etc.
It can protect the material from steam or dust, improve product
packing degree, and increase the additional value.
The machine is used to produce large quality and single product.
Both Alu Alu and Alu PVC are available by changing mould
DPP-140E Techincal Parameters
Model | ALU ALU | ALU-PVC |
Machine Body | Stainless Steel 304/316 |
Blanking frequency(times/min) | 15-30 | 20-45 |
Adjustable pulling length | 30-120mm |
Blister Plate Size | Design According To Customers’ Requirements |
Max Forming area and depth(mm) | 140*110*12 | 140*110*15 |
Air compressor(self-prepared) | 0.6-0.8Mpa ≥0.4m3/min |
Mould cooling | (Recycle water or circulating water consumption) 40-80 L/h |
Power supply(Three phase) | 380V/220V 50HZ 3KW
| 380V/220V 50HZ 5.5KW
|
Wrapper specification (mm) | Alu Alu Foil 150*(0.14-0.18)*(Φ400) | PVC 150*(0.15-0.4)*(Φ400) |
Aluminum Foil:150*(0.02-0.15)*(Φ400) |
Overall Dimension(L*W*H) (including foundation) | 2400*650*1450 |
Dimension of Each Part | 1350*650*1250(front) |
1050*650*1450(back) |
Weight | About 800kg |
Advantages
1. use Step motor to control the pulling length. When change
models, there is no need to
adjust the machine so that it’s convenient and easy operating.The
machine in other factory may use gas clip to control the pulling
length. It has two shortcomings. First, when you change the models,
you need to adjust the pulling length manually which means
adjusting screw in the pulling position. If the Operating workers
is unskilled, it will waste the material and time.
2.
All of the air supply and synchronization of the machine is
controlled by the encoder. All synchronous data
have been programmed in advance so that there is no need to adjust
air supply and pulling time manually.
The machine in other factory use Cam control, which means the
process is mechanical. As time passes, the synchronization is not
accurate. But our machines use encoder control, so that there is no
need to worry about the synchronization. If the encoder is broken,
you can also buy it in the local, it’s convenient.
3. Our machines have PRC (print register control) system, is the
cursor version of function, because the
machine is a stepper motor, so is true of PRC system forever won't
generation shift. Other manufacturers maybe gas clip can only be
manually adjusted, a long time after the shift will occur.
