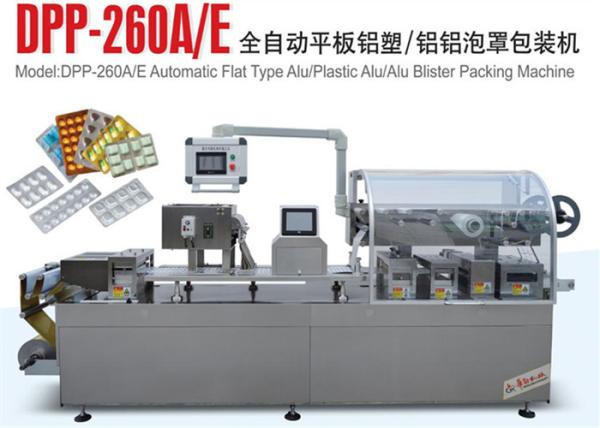

Product Name: New Condition Delicated DPP-260E Alu Alu Blister
Packing Machine
Description:
The biggest characteristic of this equipment is using mold
positioning design, convenient for customers to replace the mold,
reduce debugging time and material cost, the key parts are made of
high quality stainless steel and high-grade Aluminum Alloy
materials by machining center (CNC), mirror line cutting and other
high precision CNC equipment into one processing type, retain the
original texture finishing, highlight the noble quality. The
transparent protective cover of fine workmanship arc to ensure the
safety and the drawing processing of stainless steel cover
operation add unlimited style for the overall design, the
mechanical products can also bloom artistic charm, the whole
process of the details of the pursuit of perfection concept
throughout the design and production.
Specifications
| This machine make Alu-Alu and Alu-PVC by changing moulds. |
Model DPP-250E | ALU ALU | ALU-PVC |
Machine Body | Stainless Steel 304/316 |
Blanking frequency(times/min) | 15-30 | 20-45 |
Adjustable pulling length | 30-120mm |
Max Forming area and depth(mm) | 250*120*12 | 250*110*15 |
Air compressor(self-prepared) | 0.6-0.8Mpa ≥0.45m3/min |
Mould cooling | (Recycle water or circulating water consumption) 40-80 L/h |
Power supply(Three phase) | 380V/220V 50HZ 4.5KW | 380V/220V 50HZ 8KW |
Wrapper specification (mm) | Alu Alu Foil 260*(0.14-0.18)*(Φ400) | PVC 260*(0.15-0.4)*(Φ400) |
Aluminum Foil: 260*(0.02-0.15)*(Φ400) |
Overall Dimension(L*W*H) (including foundation) | 2900*750*1600 |
Dimension of Each Part | 1500*750*1600(front) |
1400*750*1450(back) |
Weight | About 1200kg |
Questions and Answers
Q : How about the after-sales service ?
A:Our machine have one year guarateen, life long mantainance.
We have a strong team special for after sales. We can arrange
engineer to do service for you.
Q: are you a factory or trading company?
A: we are a factory in this field nearly 15 years ( early named
Ruian Huali Pharmaceutical Machinery Factory)
Q: How does your factory do regarding quality control?
A: Quality is our invariable topic. It’s the basement of company’s
development.
From beginning of company opening, we are especially focus on
quality job.
Our pharmaceutical equipment have passed the GMP certification, ISO
international quality system certification, CE certification and
gain several utility model patents and invention patents issued by
state patent office of China.
Q: what information should I let you know when I want to get
quotation?
A: - the size of your products,the target capacity you want the
machine meet. The more information the better.
