    380V 50Hz Semi Auto Capsule Filling Machine Small Pharmacy Filling Machinery

    Ask Lasest Price
    Brand Name : HUALE MACHINUARY
    Model Number : DTJ-V
    Certification : CE/ ISO9001
    Price : negoation
    Supply Ability : 20 Set per month
    Delivery Time : 30 working days after received your payment
    • Product Details
    • Company Profile

    380V 50Hz Semi Auto Capsule Filling Machine Small Pharmacy Filling Machinery


    Hot Sale Semi Auto Capsule Filling Machine Small Pharmacy Filling Machinery


    Introductions:

    This semi automatic herbal capsule filling machine is suitable for medium and small batch production.
    This machine is used widely by medium & small pharmaceutical factory, hospital preparation lab, health supplement industry etc.


    Performance and characteristic

    • It adopts programmable control system, touch panel operation, step-less transducer speed-shift and electronic automatic counter.
    • It automatically completes the action of position, separation, filling, locking etc.
    • The dosage is accurate and the complete operation is convenient.
    • The overall machine is made of stainless steel and it is suitable for filling with powder and granules.


    Technical parameters---Old type

    Machine Model

    DTJ-V

    Output

    12500-22500 Capsules/H

    Capsule Size

    Suitable for filling capsule size 00#-5#
    Safety capsule size:A-E
    (need to exchange the spare parts/molds accordingly)

    Dosage Type

    Powder/Pellet/granules

    Power Supply

    380V 50HZ 2.1KW

    Overall dimension.

    1200mm x 700mm x 1600mm

    Net weight.

    330kg

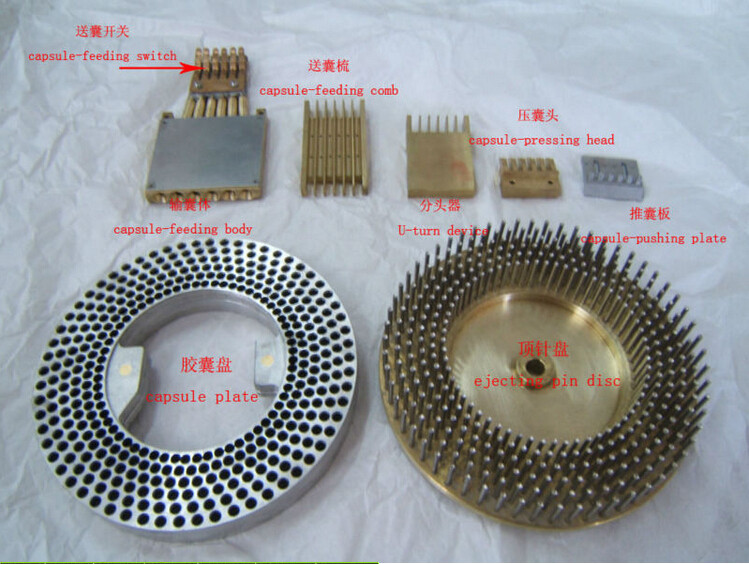

    Machine parts Introduction

    380V 50Hz Semi Auto Capsule Filling Machine Small Pharmacy Filling Machinery


    Technical parameters---New type

    Capsule sizeNo. 000#-3#
    Capacity(capsules/h)10000-22500((Depending on the operation of skilled workers)
    Power supply380V 3Pharse 4.0kw
    Vacuum pump40m3/h
    Capacity of air compressor0.03m3/min 0.7Mpa
    Overall dimensions:(mm)1140*700*1630
    Packing dimension:(mm)1650*800*1750
    Net weight:(Kg)430
    Gross weight:(Kg)500



    Machine part introduction
    380V 50Hz Semi Auto Capsule Filling Machine Small Pharmacy Filling Machinery380V 50Hz Semi Auto Capsule Filling Machine Small Pharmacy Filling Machinery

    ELECTRIC CONFIGURATION

    380V 50Hz 3Pharse 4wires

    NameModelBrandQuaRemark
    Single pole rotary vane vacuum pumpXD-040

    Shanghai Fu Yu

    1
    three phase asynchronous motorY263M2-4DA SU2
    Three phase vertical gear reduction motorTJH400W-7.5:1TAI JIE1

    Silent type

    Frequency converterDVM-2S004G-02Delisle3
    PLCDVD32ES200TDELTA1
    Touch screenMT6070iHWeinview1
    Worm gear reducer (double out axles)NMRV50-15:1-63B5DING ZU1
    transformerJBK3-63RUI AN1
    intermediate relayJIX-2COMRON2
    AC relayCJX2-12

    Schneider

    2
    BreakerDZ47-63 D20

    Schneider

    1
    BreakerDZ47-63 C6

    Schneider

    1
    Emergency stop switchY090-11XCHINT1
    Filling cylinderSC50X125Adyk1
    Lock cylinderMAL100X80Adyk1

    Air filter pressure regulating valve

    AL-2000Adyk1

    photoswitc

    GL-8FJAPAN1

    proximity switch

    H12-D5NKRUI XIANG1



    PACKAGE

    1. The machine will not be shaking in transport with wooden fixed.
    2. The machine will not be affected with damp in transport with packed with PE plastic bags.
    3. Easy shaking station will fixed with hard rope.
    4. Long machine will packed separately.
    5. If there are strict requirements, chassis can use iron girders.
