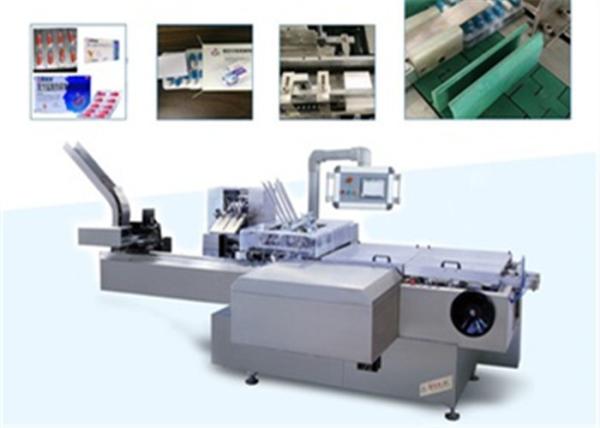

Automatic Cartoning Machine Customzied Carton Box Packing Machine
Fully Automatic Cartoning Machinery is suitable for cheese
cartoning,pouchs and
injection,medicine,cosmetis,condom.food.,tube,ointment,wrapped
products.
The machine finish running by a series of photo-electro controller
to make the machine stability and guarantee the packing quality.
It includes 1to 4folds leaflet automatic folding, cantons in
suction and open, products and leaflet put into, printing batch
number, sealing or option hot-glue device.
The machine can be single used or linked with Filling Machine,
Blister Packing Machine, Shrink Machine, Three Dimensional
Packaging Machine to form a production chain.
Specifications
| Machine Model | DXH-120W |
Max encasing speed | 50-120box/min |
Carton | Quality Requirement | 250-350g/m2 |
Dimension Range (L×W×H) | (50-200) ×(20-80) ×(14-50)mm |
leaflet | Quality Requirement | 50-65g/m2 |
Folded Leaflet Specification | (100-260)X(100-190)mm |
Folding Range | 1-4 fold |
Air Consumption | >20m3/h 0.5-0.8mpa |
Motor Power | 2.5kw 380V 50HZ |
Machine Dimension (L×W×H) | 3100*1380*1800mm |
Machine Net Weight | About 1500kg |
| Machine Model | DXH-200W |
| Max encasing speed | 200 boxes/min |
| Box | Quality requirement | 250-350g/㎡(according to carton size) |
| Dimension Rang (L*W*H) | (55-220)×(20-100)×(14-70)mm |
| Leaflet | Quality requirement | 50-70g/㎡ |
| Folded Leaflet Specification(1-4) Fold | (80-240)×(90-190)mm (L×W) |
| Compressed air | Pressure | ≥0.6Mpa |
| Consumption | 0.3m3/min |
| Motor Power | 220V 50HZ 1.5kw |
| Dimension | 4300×1440×1600mm (L×W×H) |
| Net weight | 1500kg |
Feature
1. International famous brand of electrical component such as PLC
touch screen, frequency inverters, etc.
2. Adopt human-machine operation system.
3. Automatically displaying device for trouble, speed and finished
products counting.
4. Machine running without pressing if no products or incorrect
position of products. And stopping automatically if incorrect
position of product into carton after return or no cartons or out
of leaflets continuous.
5. No products not suction leaflet, no leaflet not suction carton .
6. Automatic detection and rejection device for lacking blister
goods and leaflets.
7. Protecting automatically for overloading.
8. stable performance , operation is easy
Machine details
