Name: High Speed CE Approved Automatic Pellet Capsule Filling Machine with Siemens PLC

Features For Pellet Capsule Filler

1) Compact structure, simplified operation, easy to clean and maintain.
2) Multifunction, the machine is capable of filling powder, pellets and tablets.
3) Multiple material filling allowed, able to fill combinations, such as powder with pellets, powder with tablets, pellets with tablets into capsules.
4) Adopts high quality key components from world famous brands, to ensure steady running.
5) With the five stage dosing disc tamping method, the powder is formed into a cylinder for filling; This enables precise dosage weight control.
6) Complies with GMP standard; CE documents are available.
7) Manufacturing factory has UKAS ISO9001 certificate.
8) SGS / CE certificate.

Specifications For Pellet Capsule Filler

Description for Automatic Powder Pellet Capsule Filler

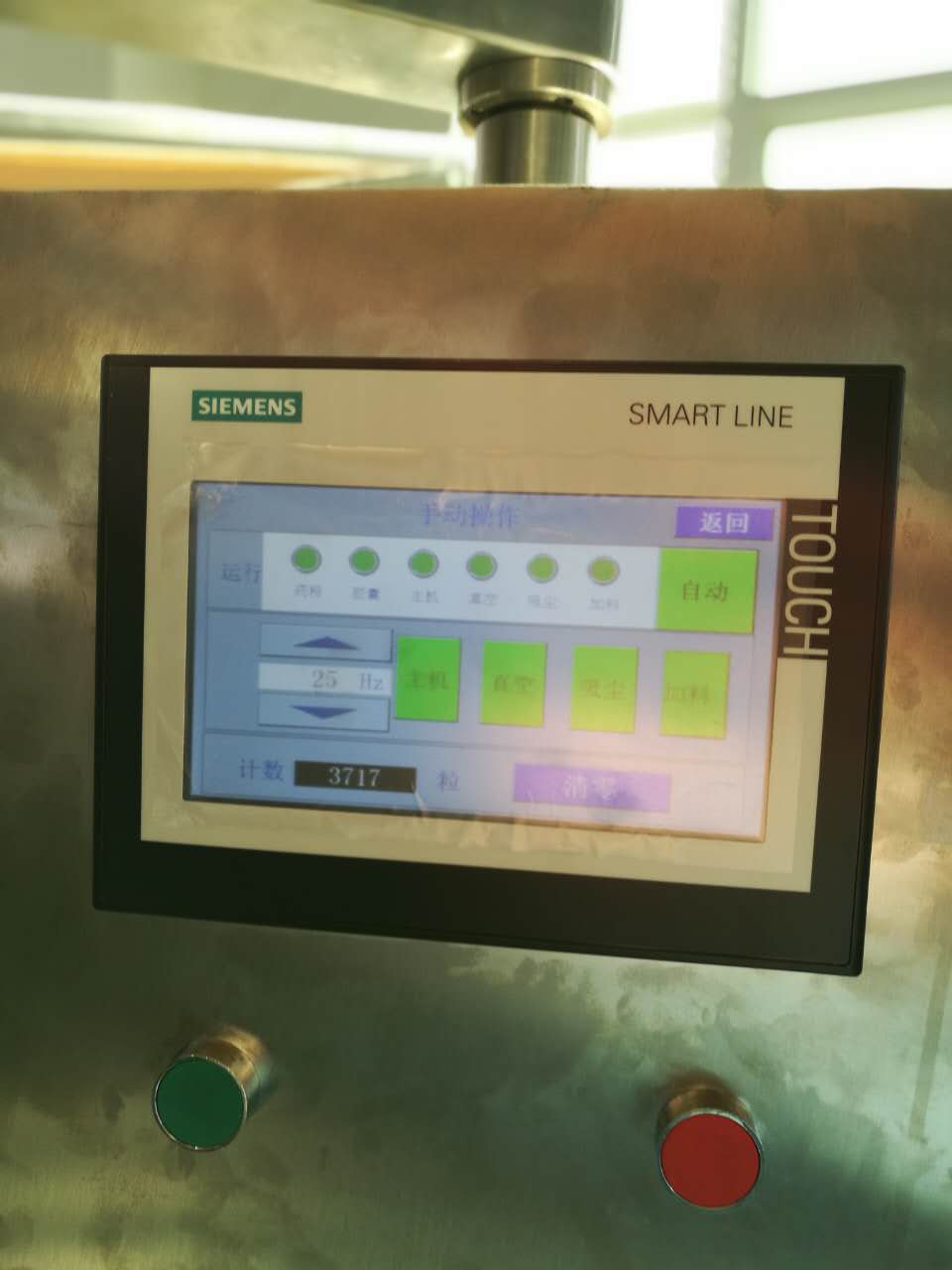

1) Machine supplied with HMI, PLC controller. Ready to connect with automatic management computer network.
2) Online monitoring of running state, failure diagnosis display.
3) Empty capsule feeding alarm, auto stop on powder feeding. Guarantee average dosage.
4) With Omron optical fibre sensor and micro printer, the production information such as current output, cumulative production and rate of finished products shown on the touch screen, which can be automatically printed.
5) Totally enclosed frame rotary table prevents contamination, and is easy to clean.
6) Filling structure especially designed for easy cleaning.
7) High quality components of driving system provide high precision.
8) Powder homogenizer (Chinese patent) inside powder chamber, ensures even distribution of filling powder, even with bad flowing powder.
9) Double-cam pellets feeding device (Chinese patent).
10) 80% of lost powder in filling section can be recovered by powder collector (Chinese patent), enabling it to be re-used.

Machine Details

Questions and Answers

Q : How about the after-sales service ?

A:Our machine have one year guarateen, life long mantainance.

We have a strong team special for after sales. We can arrange engineer to do service for you.

Q: are you a factory or trading company?

A: we are a factory in this field nearly 15 years ( early named Ruian Huali Pharmaceutical Machinery Factory)

Q: How does your factory do regarding quality control?

A: Quality is our invariable topic. It’s the basement of company’s development.

From beginning of company opening, we are especially focus on quality job.

Our pharmaceutical equipment have passed the GMP certification, ISO international quality system certification, CE certification and gain several utility model patents and invention patents issued by state patent office of China.

Q: what information should I let you know when I want to get quotation?

A: - the size of your capsules,the target capacity you want the machine meet. The more information the better.
