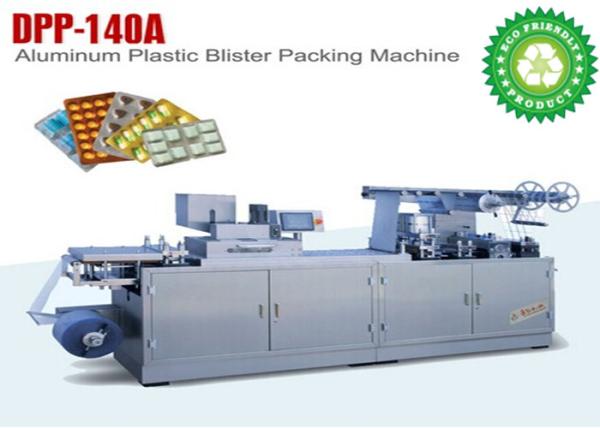

    Health Supplement Capsule Plastic Alu Blister Packing Machine

    Ask Lasest Price
    Brand Name : HUALE MACHINERY
    Model Number : DPP-140A
    Certification : CE ISO9001
    Price : Negotiation
    Supply Ability : 15 Set per month
    Delivery Time : 30 working days after received your payment.
    • Product Details
    • Company Profile

    Health Supplement Capsule Plastic Alu Blister Packing Machine

    Health supplement capsule aluminum plastic blister packing machine FACTORY PRICE


    Introduction:


    It is the best ideal packing equipment for large and medium-sized pharmaceutical plant, health care factory and food industry.

    1. Widely used
    2. High sealing
    3. Save cost

    Performance and characteristics:

    1. The machine heats the PVC through heated board and forms by compressed air frothing.
    2. It adopts the interface of human-machine and PLC control system
    3. We can design the mould and feeder according to customer’s requirement
    4. The machine include functions for easy cutting line embossing, batch number embossing and wasted packaging material rewinding.
    5. Step motor is adopted on the machine for precise controlling the pulling length and saving packing material.
    6. The heating mold will automatically separate when the machine stops, which can protect the packing material from heated mould.


    TECHNICAL PARAMETER


    Item Model

    DPP-350A

    DPP-250A

    DPP-140A

    Cutting Frequency

    (ideal sizes:80*57mm)

    15-45 cutting/min

    15-45 cutting/min

    15-45 cutting/min

    Max. Forming Area and Depth

    350×130×15

    250×120×15

    140×110×15

    Adjustable Scope of Travel(mm)

    30-140mm

    30-130mm

    30-120mm

    Packaging material

    (I.D.Φ75)

    PVC(mm)

    (0.15-0.6)

    ×350×(Φ400)

    (0.15-0.4)

    ×260×(Φ400)

    (0.15-0.4)

    ×160×(Φ350)

    PTP(mm)

    (0.02-0.15)

    ×350×(Φ400)

    (0.02-0.15)

    ×260×(Φ400)

    (0.02-0.15)

    ×160×(Φ350)

    Paper(mm)

    (50-100)g/㎡

    ×350×(Φ400)

    (50-100)g/㎡

    ×260×(Φ400)

    (50-100)g/㎡

    ×160×(Φ350)

    Power

    380V 50Hz 9.5kw

    380V 50Hz 8kw

    380V 50Hz 5.5kw

    Air compression

    (Don't Provide)

    0.6-0.8Mpa

    ≥0.6m³/min

    0.6-0.8Mpa

    ≥0.45m³/min

    0.6-0.8Mpa

    ≥0.4m³/min

    Recycle water or

    circulating water consumption

    60-100L/h

    40-80L/h

    40-80L/h

    Overall Dimension(L*W*H)(including foundation)

    3650×850×1700

    2900×750×1600

    2400×650×1450

    Dimension of Each Part

    1850×850×1700(front)

    1500×750×1600(front)

    1350×650×1250(front)

    1800×850×1650(back)

    1400×750×1450(back)

    1050×650×1450(back)

    Weight

    About 2000kg

    About 1200kg

    About 800kg
